HITACHI MS4200 Heavy Duty CIS Banknote Counter – 10 Currency Support
Couldn't load pickup availability

Product Description

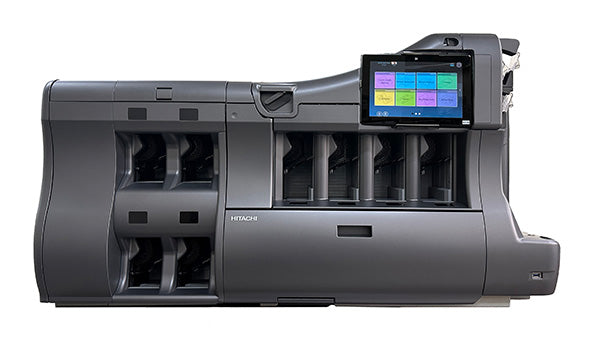

HITACHI MS4200 Heavy Duty CIS Banknote Counter - 10 Currency Support
High-throughput 4+2 pocket fitness sorter for demanding cash operations
The HITACHI MS4200 Heavy Duty CIS Banknote Counter is a high-throughput desktop sorter built for demanding cash processing environments. It is suitable for cash centres, large banks, exchange operations and financial institutions that need rapid sorting, authentication and high-volume processing across multiple currencies. The supplied version is specified for 10 currency support.
High-Throughput Processing
Up to 72,000 banknotes per hour
The MS4200 platform is listed with operating throughput up to 72,000 banknotes per hour and up to 1,200 banknotes per minute, making it suitable for large-volume cash processing.
4+2 Pocket Layout
Separate large volumes with more control
With four stackers and two reject pockets depending on configuration, the MS4200 provides strong separation capacity for professional sorting, rejection and processing workflows.
Advanced Authentication and Fitness Sorting
Built for demanding cash centres
The system supports full-line UV, IR, magnetic and thickness sensor information, helping businesses authenticate notes and manage fitness sorting in heavy-duty environments.
Key Features
- Heavy-duty 4+2 pocket banknote sorter
- 10 currency support for supplied version
- Throughput up to 72,000 banknotes/hour
- Max counting speed around 1,200 banknotes/min
- Hopper capacity around 1,200 notes
- Four stackers around 500 notes each
- Reject pockets around 250 notes each
- Full-line UV sensor
- IR, magnetic and thickness detection
- Large colour touch display
- Designed for cash centres and high-volume operations
Technical Specifications
|
Specification |
Details |
|
Brand |
HITACHI |
|
Model |
MS4200 / MS-4200 |
|
Product Type |
Heavy-duty CIS banknote sorter |
|
Currency Support |
10 currencies for supplied version; public platform specs list mix support up to 30 currencies |
|
Max Counting Speed |
Approx. 1,200 banknotes/min |
|
Throughput |
Up to 72,000 banknotes/hour |
|
Pocket Layout |
4 stackers + 2 reject pockets depending on configuration |
|
Hopper Capacity |
Approx. 1,200 notes |
|
Stacker Capacity |
Approx. 500 notes x 4 |
|
Reject Capacity |
Approx. 250 notes x 2 |
|
Detection |
UV, IR, magnetic and thickness sensors |
|
Dimensions |
Approx. 860 x 425 x 680 mm |
|
Weight |
Approx. 86 kg |
Why Choose This Product?
Choose HITACHI MS4200 when your organization needs a heavy-duty sorter built for cash centre throughput, multi-pocket separation and professional authentication.
Ideal For
- Cash centres
- Large banks
- Exchange operations
- Financial institutions
- Cash-in-transit teams
- Large retail cash offices
